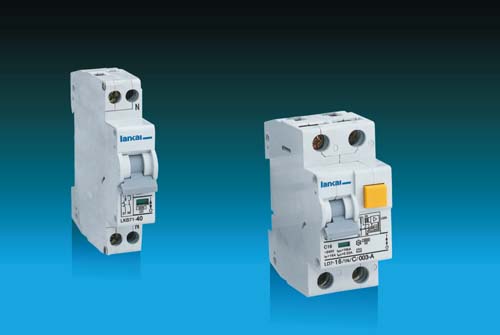

LKB71 Mini Circuit Breaker
Time：2010/9/17 15:35:19 Click：2286 |
 |
|
LKB71 Mini Circuit Breaker
Technical Parameter
Electric standard: EN60898(IEC898),GB10963
Rated voltage:230V;50/60HZ
Rated current: 6-63a
Rated breaking capacity lcn: 6KV
Release character: C type
connect fuse: 110A (>6KA)
Operated ambient temperature: -5 to +40℃
Life:all of 8000 times breaking
LKB7L Surge Protective Leakage Circuit Breaker(RCBO)
Technical Parameter
Electric standard: IEC1009(EN61009),GB1697.1
Rated voltage: 230V;50/60HZ
Rated current In:6-63A
Rated residual operated current: 10,30,100,300m/A
Rated breaking capacity lcn: 10KV
Release character:C,D type
Connect fuse:100A(>10KA)
Operated ambient temperature: as per IEC1009 standard
Life:electric all of 4000 times breaking
mechanical all of 20000 times breaking |
 |
|
