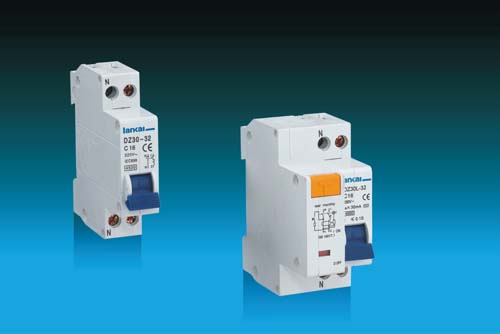

DZ30-32 Mini Circuit Breaker
Time：2010/9/17 16:12:34 Click：1983 |
 |
|
Technical Parameter
Rated current: 6A,10A,16A,20A,25A,32A
Rated Voltage: 230V
It mainly used in AC50HZ or 60HZ
Instantaneous release type: C type (5In~10In)
Operated short-circuit capacity: 4500A
Mechanical and electrical life: >4000 times.
Conform to GB10963,IEC60898 standand.
DZ30L-32 Series Residual Current -operated Leakage Circuit Breaker
Technical Parameter
It has Small size: 18mm width contains 1p+N
The size is only a half of DZ47 ,and price is more reasonable than the other same products.
The cover and function parts are both made of inflaming retarding plastic,which can bear high temperature and impact.
The products can be installed with zero line directly,avoiding the potential electric shock hazard when connected mistake.
Adopting the hight performance component of the latest ciruit design,it takes on stronger bearing when impact current and surge overpressure.
It adopts install guide rail,which is convenient and save time.
This product conforms to GB16917.1,IEC1009-1 standard. |
 |
|
