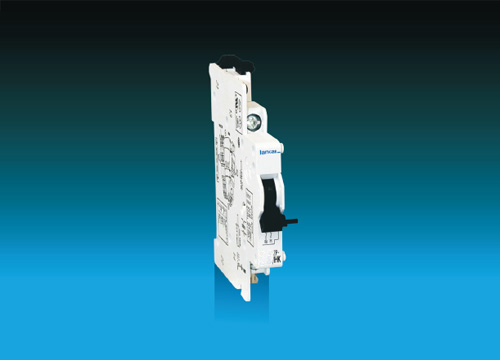

ZP-IHK Auxiliary Switch
Time：2011/2/16 15:08:10 Click：9425 |
 |
|
ZP-IHK Shunted Exciter Release
Technical Parameter
rated voltage Ue=250V
rated insulation voltageUi=250V
operation current lmin=10mA min.
minimum operating voltage per contact Umin=5V
rated therminal current lth =4A
conditional short circuit current Lk=1000A
Terminal capacity 1×0.5 mm2 - 1×2.5mm2 (stranded wires to be prepared by sleeves) Sequence of assembly.
Both switches off press both units together as shown below fix terminal screws with 0.8 Nm. |
 |
|
